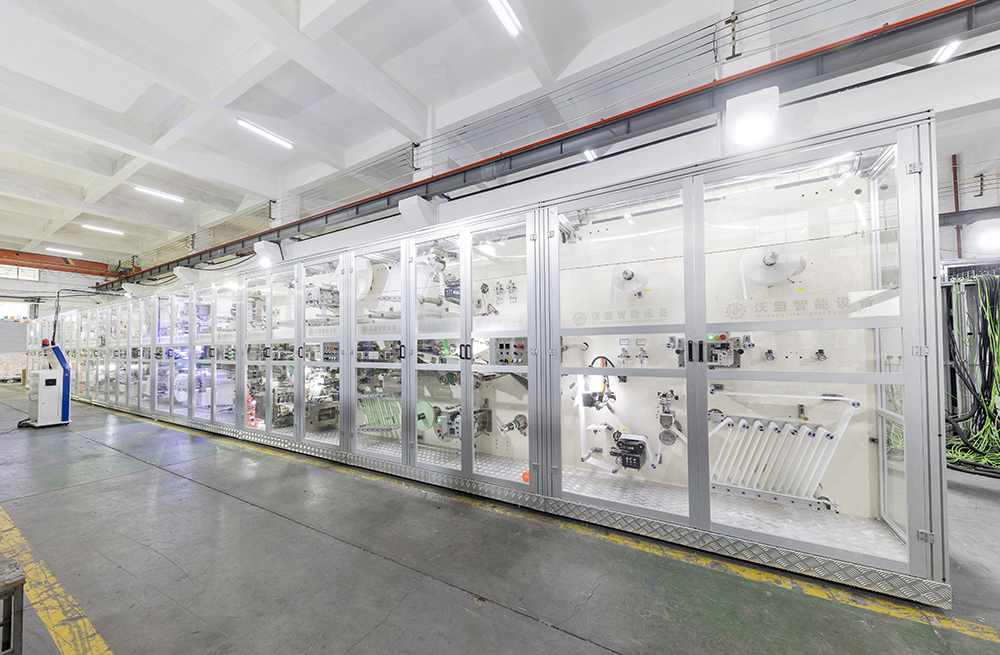

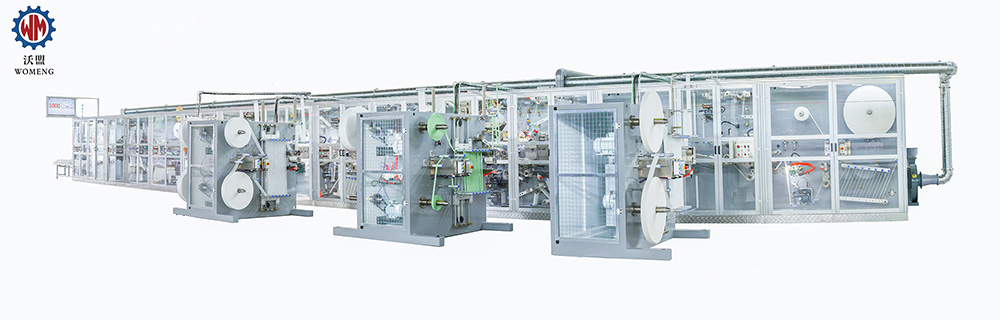

Stable Production 1000pcs/min Sanitary Pad Making Machine New Technical with CE

Short Description:

Machinery Test Report: Provided

Operator: 2-3 persons

Regional Customization: Support

Warranty: 12months

HS Code: 84418090

After-Sales Service: Engineers Available to Service Machinery Overseas/Field Installation/Video Technical Support

Conditon: New

Send email to us

Product Detail

Product Tags

Key Specifications

Production Speed	800-1200 pieces per minute
Product Size	240mm,290mm,320mm,420mm(Customized according to customer requirement)
Production Yield Rate	≥98%
Weight	About 50 tons
Machine Size	25x4x3m
Safety System	It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Raw Material	Fluff pulp, SAP, non-woven fabric, PE film
Control System	PLC control system(Mitsubishi),HMI Operating on the LED touch
Drive system	Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Power	240V,50Hz,3 Phase Five Wire

Technical features:

* Compact design, easy operation & maintenance
* Modular design, for future upgrading
* Low consumption, high efficiency
* Servo or frequency inverter transmission
* Touch screen for man-machine conversation
* Auto record and calculation of process data
* Main raw material auto splicing at zero speed
* Inverter or servo unwinding with tension control
* Web guiding controller
* Sensor quality control systems
* Material broken and lost inspection, auto machine stops and defective products auto rejection
* Easy size changing and manufacture

Sanitary Pad: Detailed Structure & Material Parameters Table

Core Structure	Sub-Structure	Main Materials	Key Features
Surface Layer	Skin-Friendly Layer	Combed Cotton,Bamboo Fiber	Soft, skin-friendly, breathable
	Breathable Layer	Microporous Non-Woven Fabric	Moisture-wicking, reduces stuffiness
Distribution Layer	Rapid Penetration Layer	High-Puff Non-Woven Fabric	Fast liquid absorption, no local accumulation
	Despersion Layer	Patterned Non-Woven Fabric	Even liquid distribution
Absorbent Core	SAP Locking Layer	Super Absorbent Polymer (SAP)	High water absorption, anti-reverse osmosis
	Support Layer	Fluff Pulp, Hollow Fiber	High water absorption, anti-reverse osmosis
Leak-Proof Bottom	PE Breathable Film	Polyethylene Breathable Film	Waterproof, breathable
	Anti-Slip Adhesive	Medical-Grade Adhesive	Secure fit, no displacement
Wings	Fixing Wings	Rigid Non-Woven Fabric	Anti-side shift
	Leak-Proof Edges	Elastic Non-Woven Fabric	Enhanced side leakage protection

About WOMENG

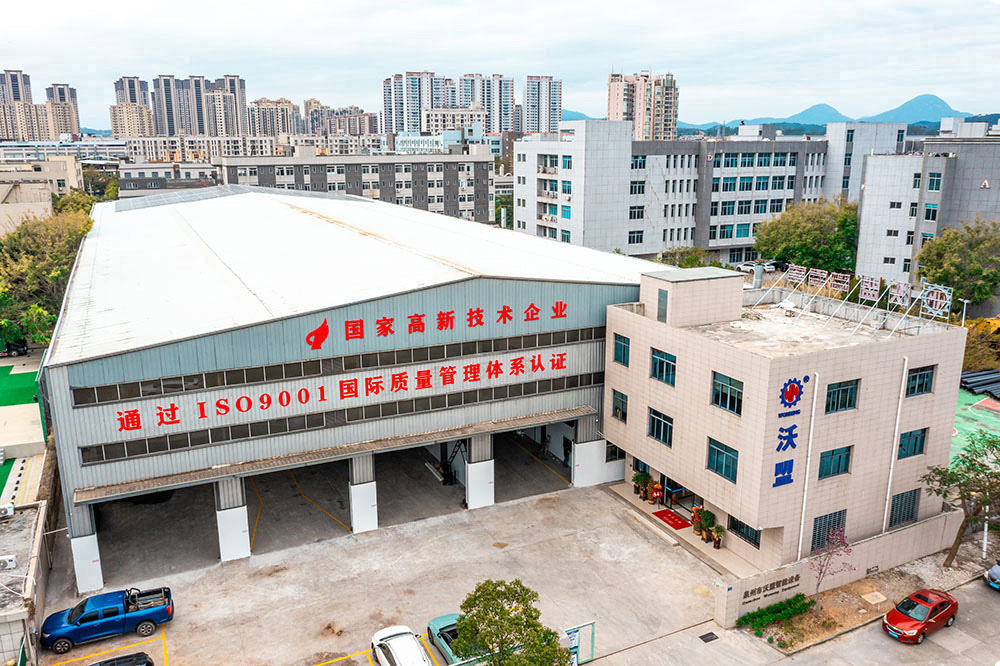

Quanzhou Womeng Intelligent Equipment Co., Ltd. is a trusted diaper production machine line manufacturer, established in 2016 in Quanzhou—East Asia’s cultural hub and the origin of the Maritime Silk Road. We focus on the development, production, and sales of high-efficiency diaper machines and related equipment.

Our main products include nappy making machine, adult diaper machine, menstrual pad machine, and diaper packaging machine, along with sanitary napkin, pant diaper, mattress, and pad production lines.

With a skilled team and modern facilities, Womeng customizes each diaper making machine to meet specific market needs, ensuring stable performance and quality output. We’re committed to providing both excellent equipment and professional technical support to clients worldwide.
