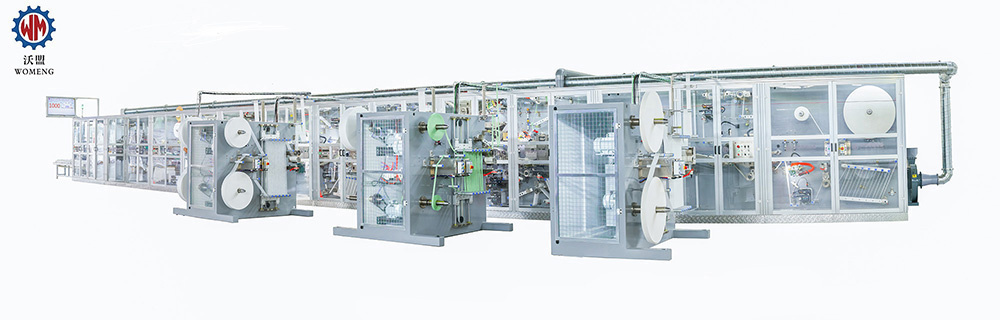

New Model 1200pcs/min Sanitary Pad Making Machine Professional Supplier Customization

Short Description:

Condition: New

Machinery Test Report: Provided

Regional Customization: Support

Warranty: 1 Year

HS Code: 84418090

After-Sales Service: Engineers service oversea/Field Installation and Irregular maintenance

Operator: 2-3 persons

Export Port: Xiamen Port

Send email to us

Product Detail

Product Tags

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Key Specifications

Production Speed	600-1200 pieces per minute
Product Size	240mm,290mm,320mm,345mm,420mm(Customized according to customer requirement)
Production Yield Rate	≥99%
Weight	About 50 tons
Machine Size	2543m(LWH)
Safety System	It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Raw Material	Fluff pulp, SAP, non-woven fabric, PE film
Control System	PLC control system(Mitsubishi),HMI Operating on the LED touch
Drive system	Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Power	240V,50Hz,3 Phase Five Wire
Optional Functions	1. Camera monitoring system (control online size checking, location inspecting, missing inspecting, stain spot scanning and so on.)2. Material roll auto unwinding servo control3. Material roll auto unwinding converter control4. Automatic Packing machine5. Full-servo control stacker (auto bagging machine)6. Automatic bagging sealing machine

Technical features:

* Compact design, easy operation & maintenance
* Modular design, for future upgrading
* Low consumption, high efficiency
* Servo or frequency inverter transmission
* Touch screen for man-machine conversation
* Auto record and calculation of process data
* Main raw material auto splicing at zero speed
* Inverter or servo unwinding with tension control
* Web guiding controller
* Sensor quality control systems
* Material broken and lost inspection, auto machine stops and defective products auto rejection
* Easy size changing and manufacture
